Vertical Mixing Tank
Share to
- Description details
-

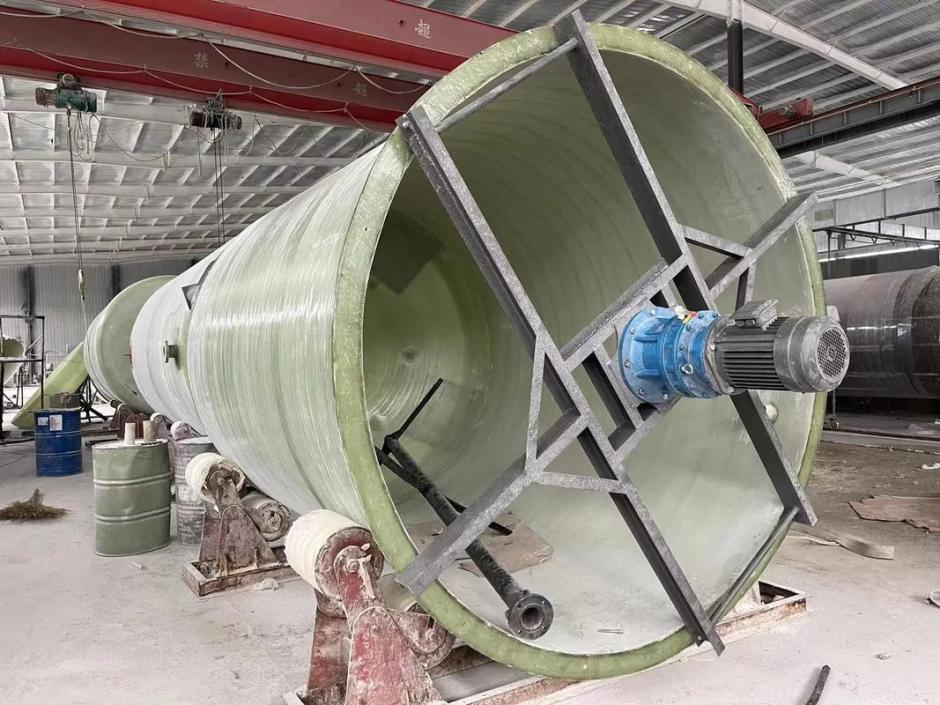

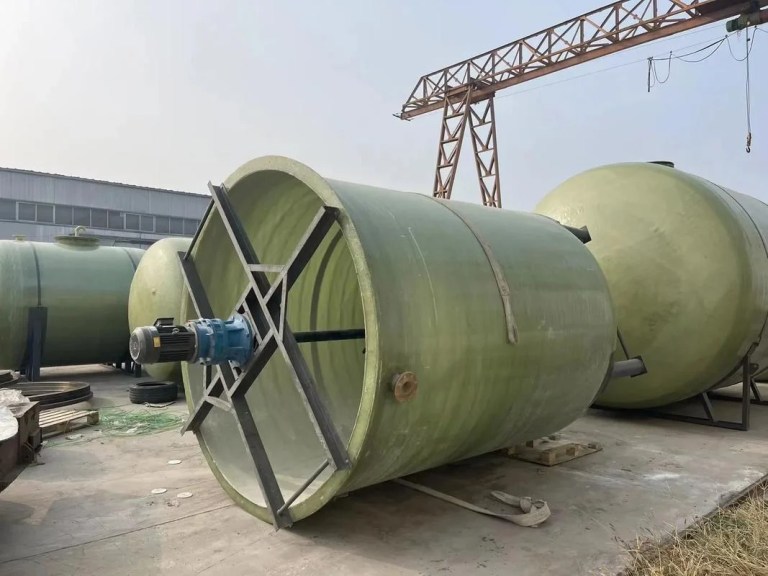

FRP Mixing Tank (GRP Mixing Tank) is a mixing container made of fiberglass reinforced plastic (commonly known as FRP), which is widely used in chemical, environmental protection, food, pharmaceutical, water treatment and other industries. Compared with traditional metal mixing tanks, FRP mixing tanks have significant advantages such as corrosion resistance, light weight, high strength and long service life.
Standard Specification Parameters
Parameter category Specification range
Volume range 0.5m³-100m³
Working pressure Normal pressure or micro pressure (≤0.3MPa)
Working temperature -50℃~120℃
Tank diameter 800mm-5000mm (customizable)
Stirring speed Designed according to process requirements
Stirring power 0.55KW-22KW (optional)
Interface specifications DN25-DN300 (configurable on demand)
Customized Service
We provide comprehensive customized services according to drawings, and can professionally design and produce according to the drawings or specific size requirements provided by customers:
1.Size customization
Non-standard sizes and special-shaped structures can be made as required
2.Function customization
Heating/cooling jackets, special stirring devices, multi-stage stratification, etc. can be added.
3.Accessory customization
Monitoring devices such as liquid level gauges, thermometers, and pH meters can be configured on demand.
4.Material customization
Different resin systems (such as vinyl ester resins, epoxy resins, etc.) can be selected according to the characteristics of the medium.
Application Area- Chemical industry: mixing and reaction of various acid and alkali liquids
- Environmental protection engineering: sewage treatment, waste gas Absorption, etc.
- Food and beverage: raw material preparation, fermentation process
- Pharmaceutical industry: synthesis of pharmaceutical intermediates
- Electroplating industry: preparation and storage of electroplating solution
WHY CHOOSE US
1.Quality Assurance
All FRP mixing tanks are made of high-quality raw materials, strictly implement industry standards (HG/T20696-2018), and ensure product quality through the following quality control measures:
Computer-aided design ensures structural rationality
Professional hand lay-up or winding process production
100% airtightness testing
Strict quality inspection before leaving the factory
2.After-sales service
We provide a complete after-sales service system, including installation guidance, use training and regular return visits to ensure that customers get the best use experience.
If you need to know more about the customization of FRP mixing tanks or get professional advice, please feel free to contact our technical team, we will provide the best solution according to your specific process requirements.
- Chemical industry: mixing and reaction of various acid and alkali liquids
